TRIMUX - two ternary multiplexers on one PCB

[jay4th]

Cool re. working!

How did the invisible organic coating, as opposed to more traditional tin coating, behave with soldering? Any issues?

[Shaos]

Cool re. working!

How did the invisible organic coating, as opposed to more traditional tin coating, behave with soldering? Any issues?

I don't know yet. I thought that it's just copper, so I finished this one manually using liquid rosin flux and my soldering iron...

[Shaos]

1st board was assembled and tested - it's working



When V-NEG=-4.4V and V-POS=+4.4V TRIMUX has thresholds at -3.1V and +1.6V (around second threshold there is a short range of voltage when one switch is already opened, but second is not yet closed). Later I will test it on voltages +5V and -5V.

When V-NEG=-5.0V and V-POS=+5.0V TRIMUX has thresholds at -3.4V and +1.9V

P.S. According to the logo, manufacturer of these DG403s is "Siliconix Inc" (current owner of this brand is Vishay):



See their datasheet here

[Shaos]

One possible application of this device - Ternary Half-Adder:



Full adder will require 7 TRIMUX devices

[Shaos]

More TRIMUX applications:

[Shaos]

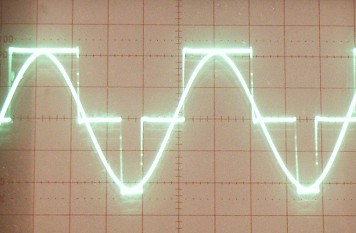

TRIMUX connected as buffer:

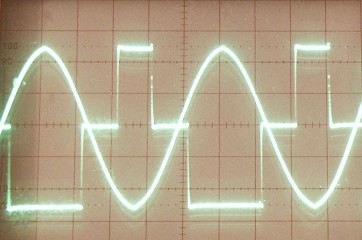

TRIMUX connected as inverter:


Speed test of TRIMUX connected as inverter (without resistors):



It looks like speed limit for TRIMUX is 1 MHz

[Shaos]

I got new boards:



If somebody wants to test it I can send 1 PCB for free (actually for feedback)

[Shaos]

boards to go:

[Shaos]

Official place to buy TRIMUX board ($13) or kit ($30):

http://nedocon.com/store/trimux/

Free U.S. shipping!

[Shaos]

you can still buy it

[Shaos]

Official place to buy TRIMUX board ($13) or kit ($30):

http://nedocon.com/store/trimux/

Free U.S. shipping!

Prices and store location updated - now board, kit and pre-build board are available on Tindie:

https://www.tindie.com/products/TRC/trimux-dual-balanced-ternary-multiplexerdemultiplexer/

[Shaos]

How to use TRIMUX in English
https://habr.com/en/post/437254/
